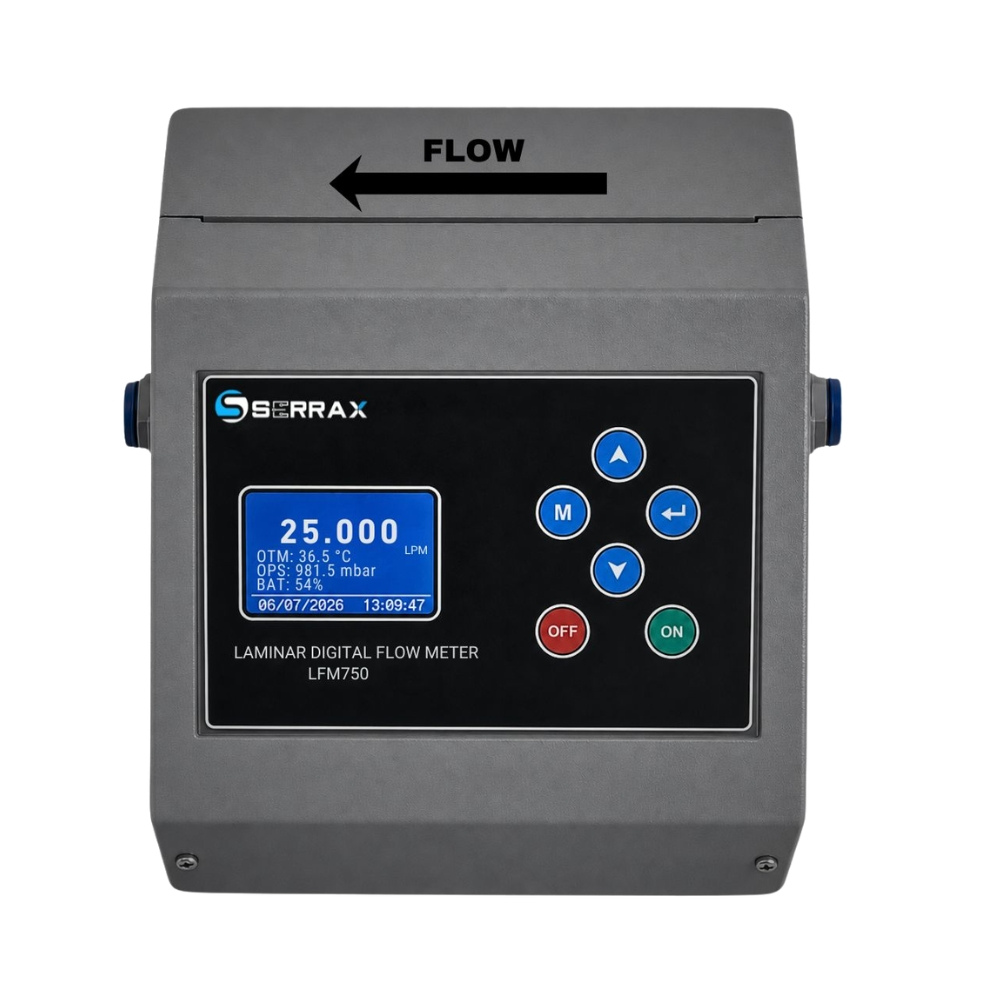

Serrax LFM750 Laminar Flow Element (LFE) Digital Flow Meter
The Serrax LFM750 Laminar Flow Element (LFE) Digital Flow Meter is a high-precision portable instrument designed for accurate gas flow measurement. Featuring a measurement range of 0.5 to 50 LPM, ±1% of reading accuracy, and a rechargeable lithium-ion battery, it is ideal for laboratories, calibration facilities, research institutions, and industrial gas flow applications.
Key Features
- Flow measurement range: 0.5 to 50 LPM
- High accuracy: ±1% of reading
- Fine resolution: 0.001 LPM
- Measures air and non-corrosive gases
- Large 128 × 64 graphical LCD display
- Rechargeable lithium-ion battery
- Up to 20 hours battery backup
- Compact and portable design
- User-selectable flow modes
- Based on Laminar Flow Element (LFE) technology
Product BrochureProduct Description
Accurate Gas Flow Measurement with Advanced LFE Technology
The Serrax LFM750 Laminar Flow Element Digital Flow Meter is engineered to provide reliable and repeatable flow measurements for air and non-corrosive gases. Utilizing a precision Laminar Flow Element (LFE) sensor, the instrument calculates flow by measuring the differential pressure developed across the flow element, ensuring exceptional measurement stability and accuracy.
Designed for laboratory, industrial, calibration, and research applications, the LFM750 offers a wide measurement range from 0.5 to 50 LPM with a high resolution of 0.001 LPM, making it suitable for both low-flow and medium-flow monitoring requirements.
High-Performance Features
The instrument is equipped with a clear 128 × 64 graphical LCD display that provides easy visibility of flow readings and operating parameters. Its rechargeable lithium-ion battery delivers up to 20 hours of continuous operation, enabling field and portable applications without dependence on external power sources.
Users can select different flow display modes, including:
- Flow at Operating Conditions
- Flow at Standard Temperature and Pressure (STP)
- Mass Flow at Operating Conditions
- Mass Flow at STP
Applications
- Gas flow calibration laboratories
- Environmental monitoring systems
- Industrial process monitoring
- Research and development facilities
- Medical and laboratory gas testing
- Leak testing and performance verification
- Instrumentation and calibration services
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LFM750 |
| Technology | Laminar Flow Element (LFE) |
| Flow Range | 0.5 to 50 LPM |
| Resolution | 0.001 LPM |
| Accuracy | ±1% of Reading |
| Measured Medium | Air & Non-Corrosive Gases |
| Display | GLCD 128 × 64 |
| Power Supply | Rechargeable Lithium-Ion Battery |
| Battery Backup | Up to 20 Hours (Typical) |
| Charging | External Charger Supplied |
| Dimensions | 150 × 150 × 120 mm |
| Flow Modes | Operating Flow, STP Flow, Mass Flow |
Why Choose the Serrax LFM750?
The LFM750 combines portability, precision, and ease of operation in a compact package. With advanced LFE-based flow sensing, multiple flow calculation modes, long battery life, and excellent measurement accuracy, it is an ideal solution for professionals requiring dependable gas flow measurements in laboratory and industrial environments.
