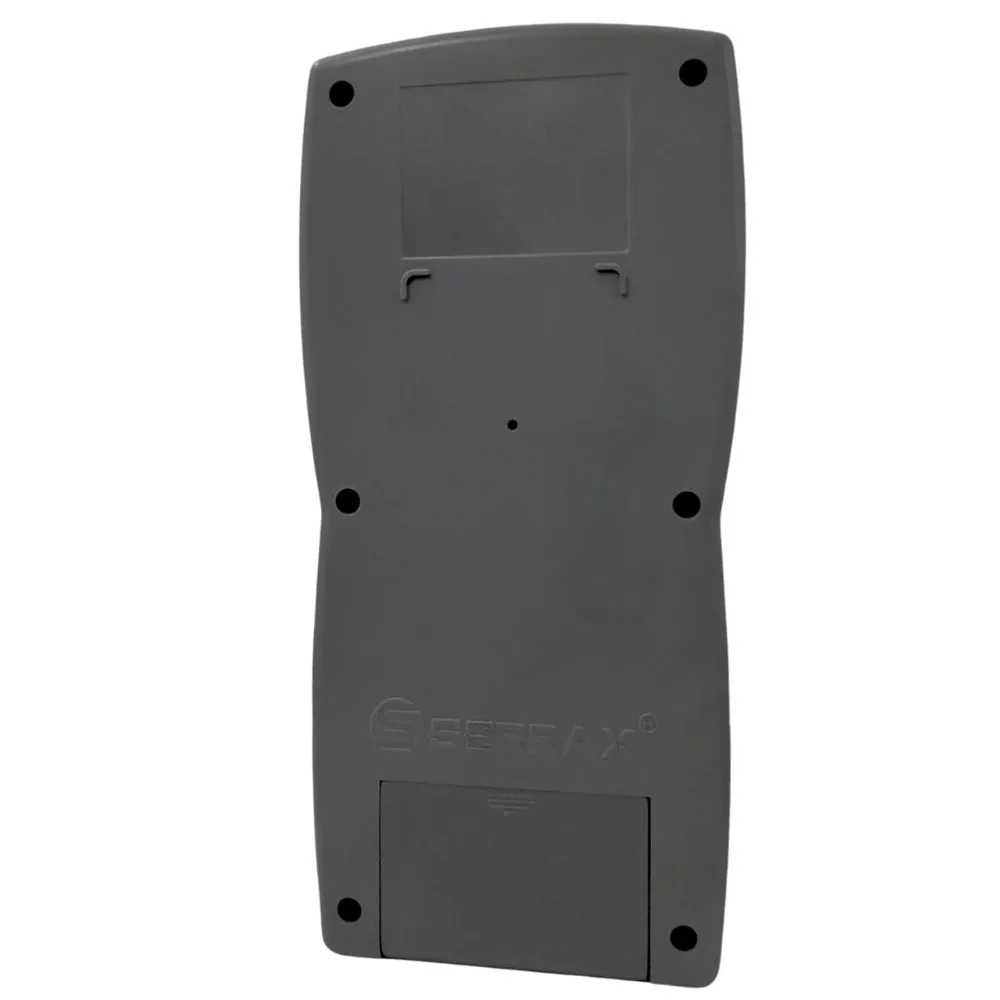

GASX505 Multi-Gas Analyzer

The GASX505 Multi-Gas Analyzer by Serrax Technologies is a portable monitoring instrument designed for measuring multiple gases and environmental parameters in industrial and field applications. The analyzer combines gas measurement with temperature, humidity, and optional particulate monitoring in one compact device.

The GASX505 Multi-Gas Analyzer supports different sensor technologies, including electrochemical (EC), NDIR, RTD, and polymer capacitance sensors. Depending on the selected configuration, it can measure O₂, CO, CO₂, SOx, NOx, temperature, and relative humidity. Optional PM2.5 and PM10 measurement is also available for applications that require particulate monitoring.

Key Features of the GASX505 Multi-Gas Analyzer

The instrument provides measurement ranges suitable for environmental monitoring, industrial inspection, and field testing. The available ranges include:

• Temperature:-10 to 60°C
• Relative Humidity:10 to 90% RH
• CO₂:0 to 10,000 ppm
• O₂:0 to 30%
• CO:0 to 1,000 ppm
• SOx:0 to 20 ppm
• NOx:0 to 20 ppm
• 5:0 to 700 µg/m³
• PM10:0 to 1,000 µg/m³

The analyzer provides a resolution of 0.1°C for temperature, 0.1% RH for humidity, 10 ppm for CO₂, 0.01% for O₂, 1 ppm for CO, 0.01 ppm for SOx and NOx, and 1 µg/m³ for PM2.5 and PM10. The specified accuracy is 1% FS.

Data Logging and Portable Operation

The GASX505 features built-in data logging, allowing users to record measurement data during field monitoring. Data can be transferred through USB in Excel format, which makes it easier to review, organize, and prepare monitoring reports.

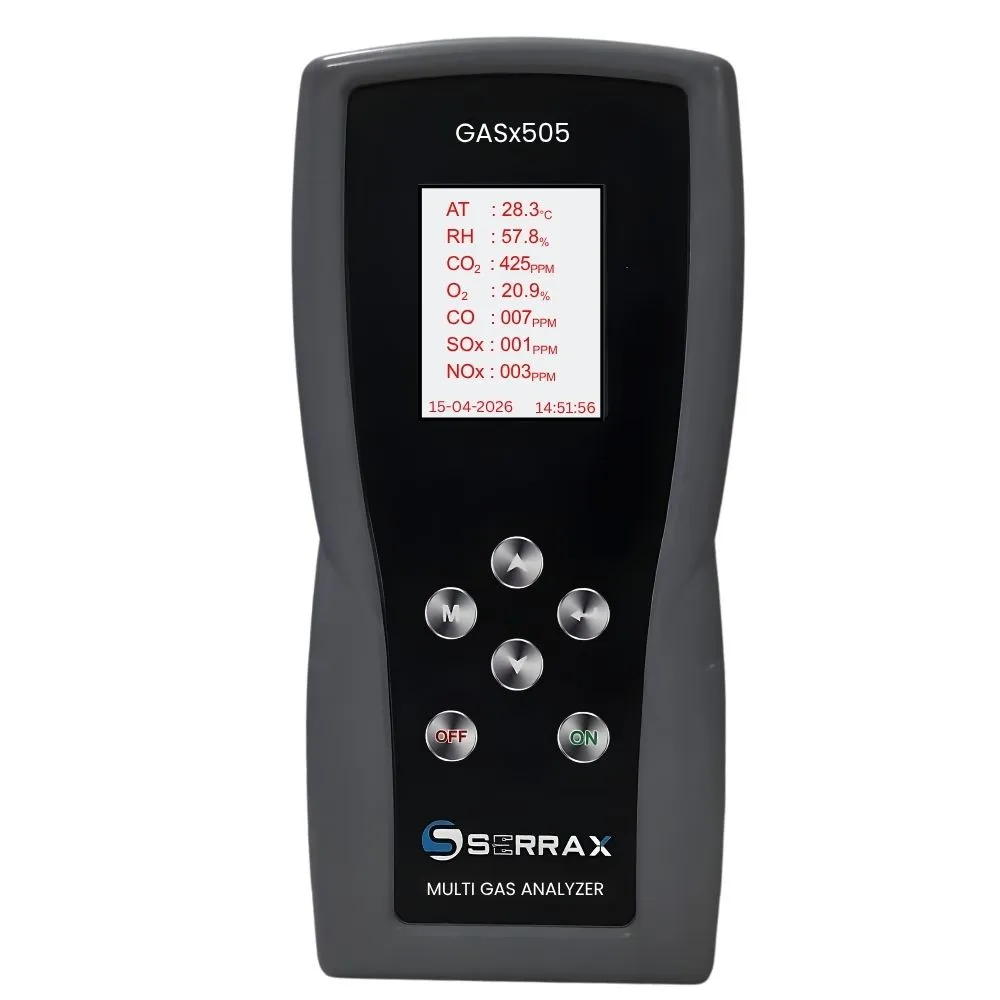

A rechargeable battery supports portable operation, while the TFT display provides a clear interface for viewing measurement readings. Its compact design makes the instrument suitable for on-site environmental and industrial measurements.

Applications

The GASX505 Multi-Gas Analyzer can be used for:

• Industrial environmental monitoring
• Workplace and industrial safety checks
• Gas concentration monitoring
• Emission and compliance inspections
• Environmental surveys
• Field measurement and data collection
• Air quality assessment with optional PM2.5 and PM10 monitoring

For applications requiring additional environmental monitoring equipment, explore Serrax Technologies’ Environmental Monitoring Instruments and related gas and air quality solutions. You can also contact Serrax for configuration, technical specifications, calibration, and application-related enquiries.
