Digital Manometer LDP600
- Portable handheld digital differential manometer for accurate pressure measurement.
- Measures differential pressure in air and other non-explosive gases.
- Supports multiple pressure units: psi, mbar, bar, kPa, inH₂O, inHg, mmHg, cmH₂O, and kg/cm².
- GLCD display with backlight for clear visibility in low-light conditions.
- Displays Minimum, Maximum, Average, and Hold measurement values.
- Fast response time of less than 1 second.
- High accuracy with pressure ranges from ±0.075 psi to ±100 psi.
- Power Supply 9V battery for convenient portable operation.
- Ideal forHVAC systems, pneumatic equipment, compressors, pumps, valves, tanks, laboratories, and industrial maintenance.
- Compact design with dimensions of 170 × 80 × 30 mm, making it easy to carry and
Download BrochureProduct Description

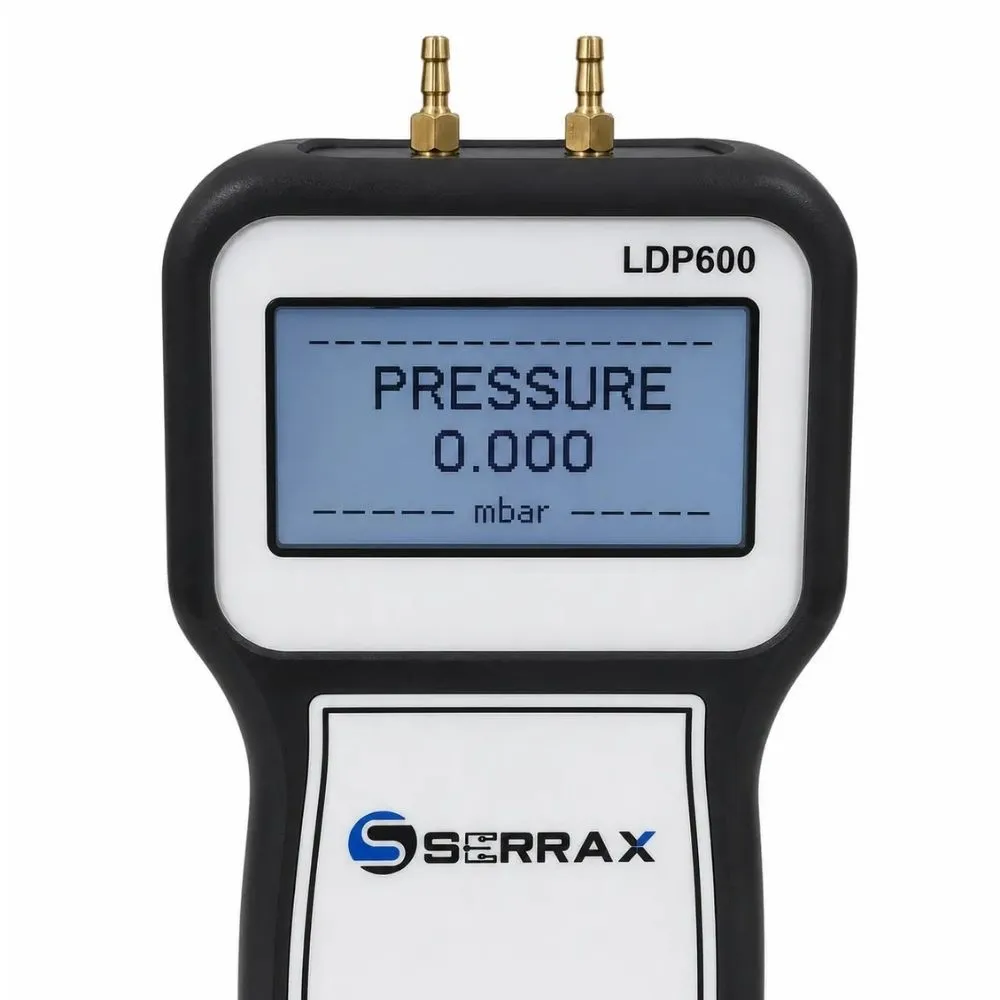

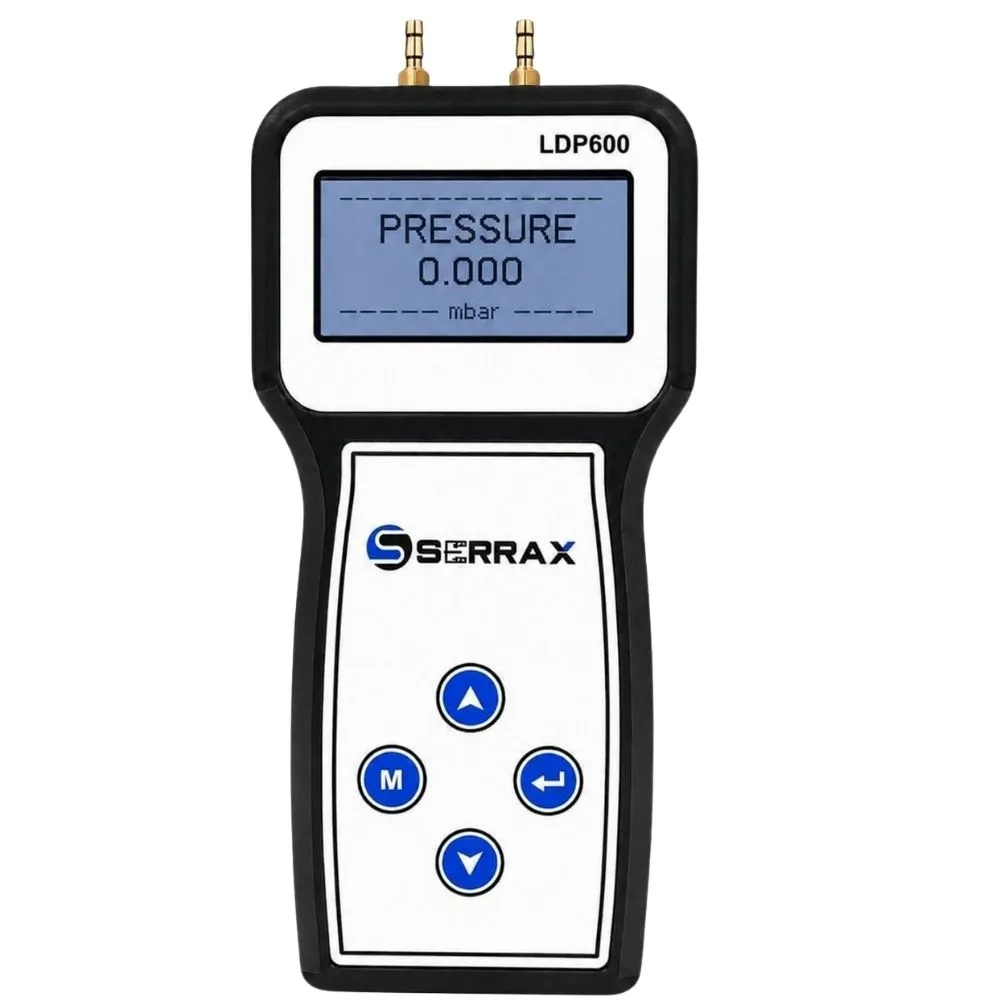

SERRAX LDP600 Portable Handheld Digital Differential Manometer
The SERRAX LDP600 Digital Differential Manometer is a professional handheld instrument designed to measure differential pressure with high accuracy and fast response. Built for industrial, laboratory, HVAC, and maintenance applications, the LDP600 provides reliable pressure measurement for air and other non-explosive gases.
Its compact and lightweight design makes it ideal for field engineers, service technicians, calibration professionals, and maintenance teams who require accurate pressure readings during installation, testing, troubleshooting, and preventive maintenance.
The instrument features a large GLCD display with backlight, making measurements easy to read even in low-light environments. With multiple pressure units, Min/Max/Avg/Hold functions, and excellent measurement accuracy, the LDP600 is suitable for both routine inspections and precision pressure testing.
Key Features
- Portable handheld digital differential manometer
- Measures differential pressure with high accuracy
- Large GLCD display with backlight
- Fast response time of less than 1 second
- Multiple pressure measurement units
- Displays Minimum, Maximum, Average, and Hold values
- Suitable for air and non-explosive gases
- Compact, lightweight, and easy to operate
- Battery-powered using a 9V battery
- Ideal for industrial and laboratory applications
| Parameter | Specification |
|---|---|
| Product Model | SERRAX LDP600 |
| Instrument Type | Portable Handheld Digital Differential Manometer |
| Measurement Units | psi, mbar, bar, inH₂O, kPa, inHg, mmHg, cmH₂O, kg/cm² |
| Measuring Functions | Min, Max, Avg, Hold |
| Display | GLCD with Backlight |
| Response Time | Less than 1 Second |
| Measurement Medium | Air and Non-Explosive Gases |
| Power Supply | 9V Battery |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 0–80% RH |
| Dimensions | 170 × 80 × 30 mm |
| Pressure Range | Resolution | Accuracy |
|---|---|---|
| ±0.075 psi | 0.0001 psi | ±1.5% FS |
| ±0.15 psi | 0.0001 psi | ±1.5% FS |
| ±0.3 psi | 0.0001 psi | ±1.0% FS |
| ±0.8 psi | 0.0001 psi | ±1.0% FS |
| ±1.5 psi | 0.0001 psi | ±1.0% FS |
| ±3.0 psi | 0.0001 psi | ±0.5% FS |
| ±5.0 psi | 0.0001 psi | ±0.5% FS |
| ±15 psi | 0.001 psi | ±0.5% FS |
| ±30 psi | 0.001 psi | ±0.5% FS |
| ±60 psi | 0.001 psi | ±0.5% FS |
| ±100 psi | 0.001 psi | ±0.5% FS |
Applications
The SERRAX LDP600 is widely used for:
- HVAC system testing
- Pneumatic system maintenance
- Air pressure measurement
- Compressor installation and servicing
- Pump testing
- Valve inspection
- Tank pressure monitoring
- Cleanroom pressure measurement
- Laboratory pressure testing
- Industrial process monitoring
- Calibration laboratories
- Maintenance and troubleshooting
Why Choose SERRAX LDP600?
The SERRAX LDP600 combines portability, accuracy, and ease of use in a single handheld device. Its fast response, multiple pressure units, and advanced measuring functions make it an excellent choice for engineers and technicians working in industrial plants, HVAC systems, laboratories, and maintenance environments. Designed for dependable performance, it delivers consistent pressure measurements whenever accuracy matters.
Package Includes
- SERRAX LDP600 Digital Differential Manometer
- 9V Battery
- User Manual
